Hammer Crusher

Hammer Crusher Mill Impact Single Stage Small with Large Capacity Low Price

We manufactureHammer Crusher Mill Impact Single Stage Small with Large Capacity Low Price. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

Hammer Crusher is composed of box body, rotor, hammer head, counter lining plate, a sieve plate, etc., it can be used not only for a crushing production line and sand making production line, but it also can replace cone crusher in a beneficiation production line. The high-speed rotating hammer collides with the material to realize breaking, and it owns the characteristics of simple structure, large crushing ratio and high production efficiency.

2.Features

(1) The hammer crusher adopts high-manganese steel, its working efficiency is increased more than 30%.

(2) Triple crushing, more efficient, more energy-saving.We also can adjust the required particle sizes according to customer requirements.

(3)The structure of the body is sealing, solving the dust pollution of the crushing in workshop and the problem of ash leakage.

(4) Each component of the hammer crusher under goes strict screening and it can achieve long time operation.

(5) The crushing ratio is large,and the particle size of the product is uniform. There is no excessive crushing phenomenon.

3.Working principle

When the hammer crusher machine is working, the motor drives the rotor to rotate at a high speed through the belt, and there are many hammers on the rotor. The rotating hammers use a high rotation speed to crushing them after the materials fall into the hammers working area, the being crushed size can be discharged through the outlet, the large size material is being brought back to the crushing area to being re-crushed again until they are meet the required size.

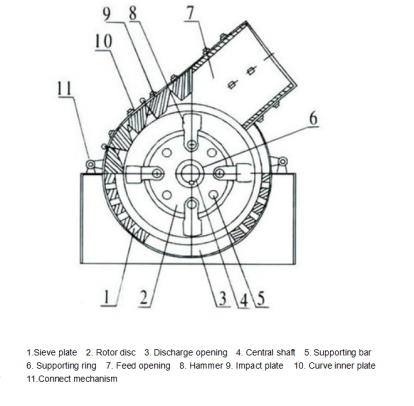

4. Structure

5.Technical Data

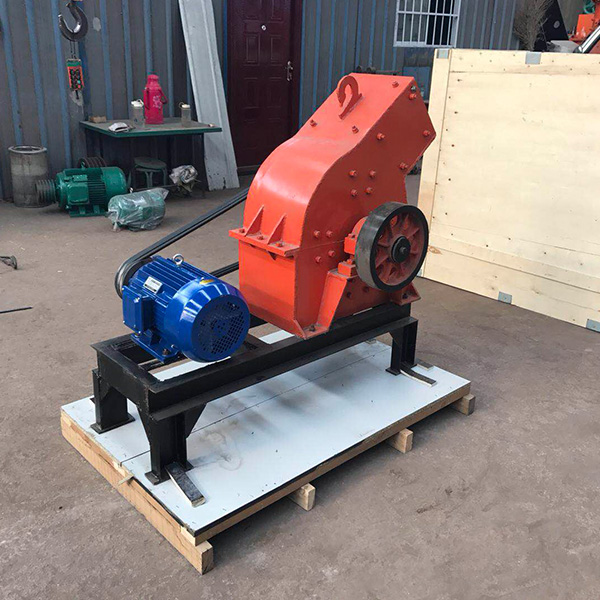

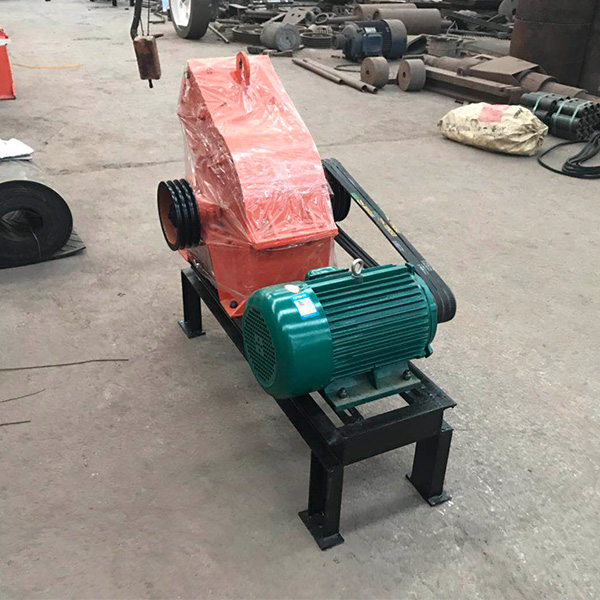

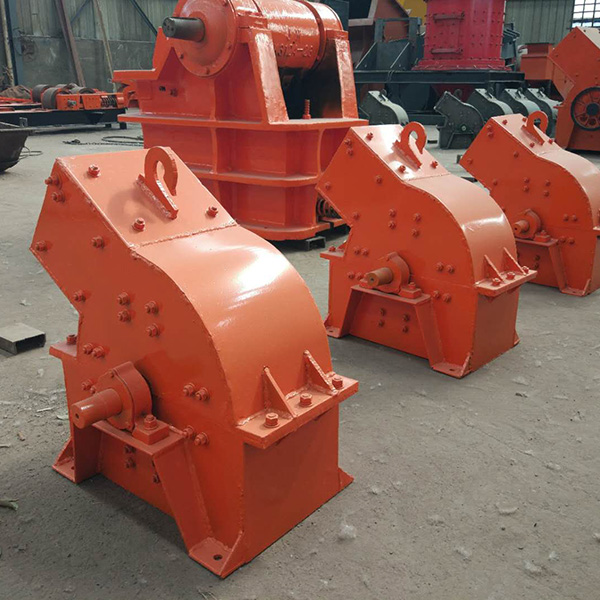

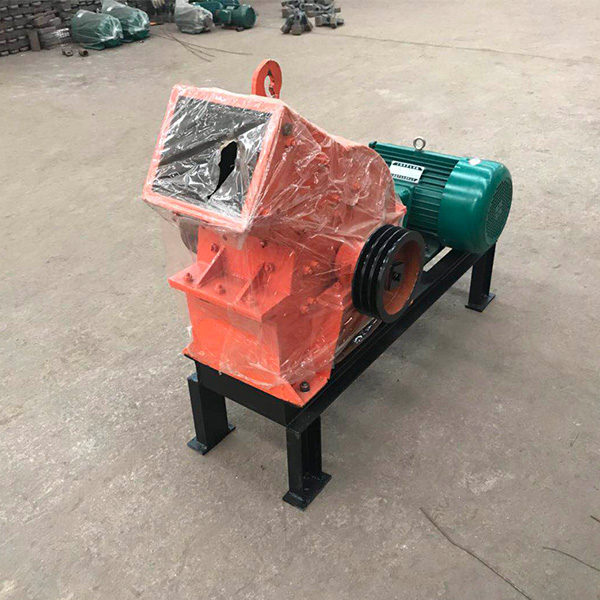

6. Pictures

7. Delivery and Working Site
