Impact Crusher

Impact CrusherSecondary Single Rotor Horizontal Shaft for Limestone Asphalt

We manufacture Impact CrusherSecondary Single Rotor Horizontal Shaft for Limestone Asphalt. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

Impact crusher is a new and high working efficiency crushing equipment,which adopted mature manufacturing technology and unique structural design,it can handling 100-500mm material.It has advantages of high crushing ratio,the final size is cube,and impact crusher is widely applied in mining, transportation, energy, construction and chemical industry.Discharge size can be adjusted and has many crushing specification,anyway it is a promising crusher.

2.Features:

1. Large crushing ratio, high crushing efficiency.

2.Feeding size is large, the crushing chamber is high and the output material has less stone powder;

3. Plate hammer, counterattack plate and lining plate are made of new wear-resistant materials, which greatly extend the crusher’s service life;

4. It has the functions of three-stage crushing and shaping, the product has good grain shape, the backlash plate and the plate hammer gap can be easily adjusted, the discharge granularity can be effectively controlled.

5. Reasonable hammer structure and it can greatly shorten the replacement time.

6. No key connection, convenient to maintain, economical and reliable.

2. Working principle:

Impact crusher is a kind of machinery equipment that uses impact energy to break medium-hard and brittle materials. When it is working, the rotor rotates at a high speed under the driving of the motor. Rocks get huge kinetic energy from the impact process. After the material enter the crusher, it collides with the hammer on the rotor and breaking rocks at a very high speed. Rocksare broken and countered. Rocks that come back from the plate are being impacted again by thehammeruntil all of them are being fullybroken.

.

3. Technical Parameter

5. Pictures

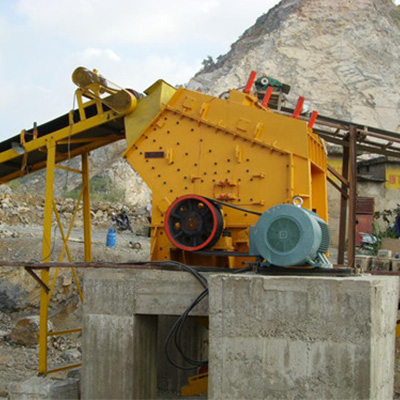

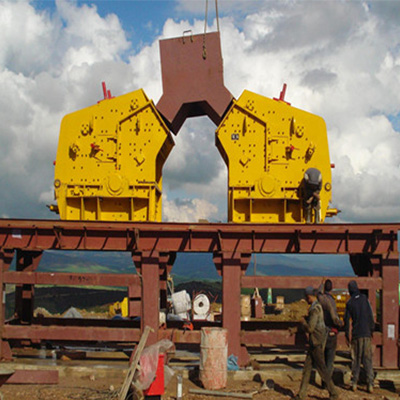

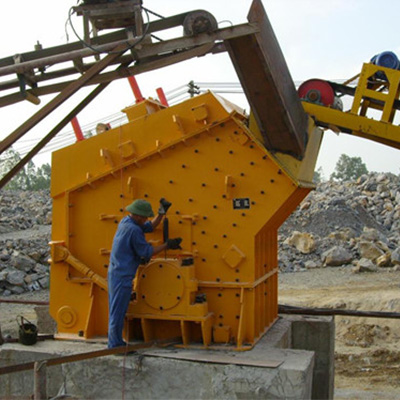

6. Working Site
