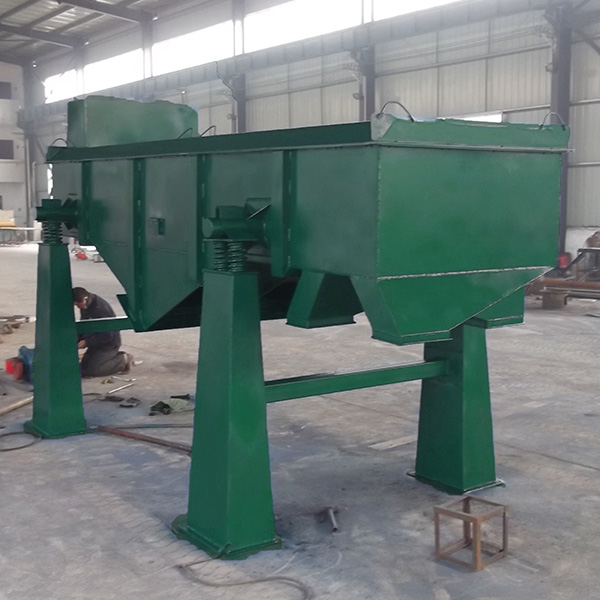

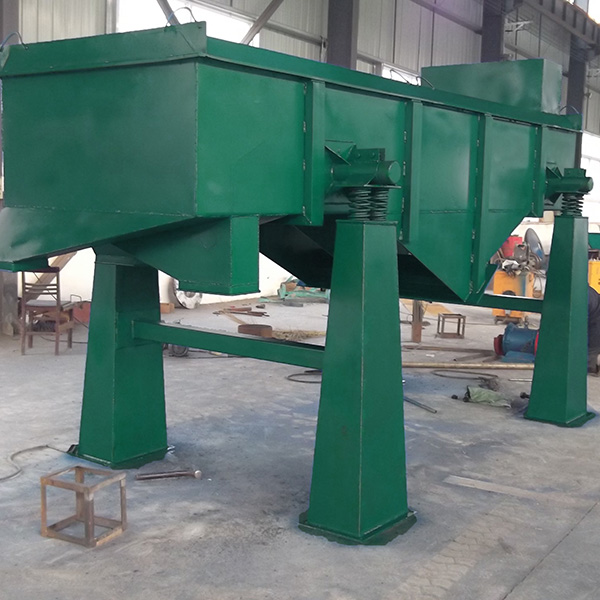

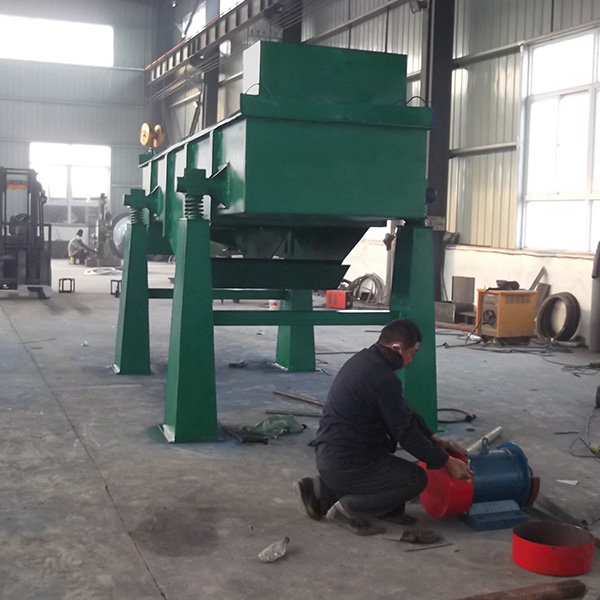

Linear Vibrating Screen Light SandCoal Powder with High Frequency

We manufacture Linear Vibrating ScreenLight SandCoal Powder with High Frequency. We devote ourselves to mining machinery for many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

The linear vibrating screen is a screening device designed for materialsof large particles or coarse powder, andit is mainly used for the production process of products requiring large handling capacity and small particle size. It is commonly used in the process of screeningand classification of small dry powder or granular materials such as the industries of abrasives, building materials, chemicals, foods, pharmaceuticals, engineering plastics, carbon, carbon black, metallurgy, chemical fertilizers, etc. It has advantages of reasonable screen mesh fixed design, high screening precision, adjustable precision and other characteristics. We have stainless steel and carbon steelscreen frame, and1-6 decks of screen mesh for your choice.

1. Specification

Model	DZSF-515	DZSF-520	DZSF-825	DZSF-530	DZSF-1020	DZSF-1230	DZSF-1030
Screen Mesh (mm)	500×1500	500×2000	800×2500	500×3000	1000×2000	1200×3000	1000×3000
Feeding Size (mm)	0.074--10	0.074--10	0.074--10	0.074--10	0.074--10	0.074--10	0.074--10
Frequency (/min)	1000	1000	1000	1000	1000	1000	1000
Angle	0°-7°	0°-7°	0°-7°	0°-7°	0°-7°	0°-7°	0°-7°
Amplitude	3-4.5	3-4.5	3-4.5	3-4.5	3-4.5	3-4.5	3-4.5
Decks	1-6	1-6	1-6	1-6	1-6	1-6	1-6
Power (kw)	2*0.25	2*(0.25-0.55)	2*(0.4-0.75)	2*(0.4-0.75)	2*(0.37-1.1)	2*(0.4-1.5)	2* (0.7-1.5)

3. Features

1. The screen body is welded of rolled steel plate and section steel (partial body is bolted), the overall rigidity is better, and it is more solid and reliable.

2. Fully-enclosed structureand automatic dischargegreatly improve the screening efficiency of thelinear vibrating screen, which is more suitable for modern assembly line operations.

3. Good sealing, no dust overflow, more environmentally friendly.

4. High screening accuracy, largehandling capacity, and simple structure.

5. Different materialsof screen mesh are available.

Structure and Working Principle

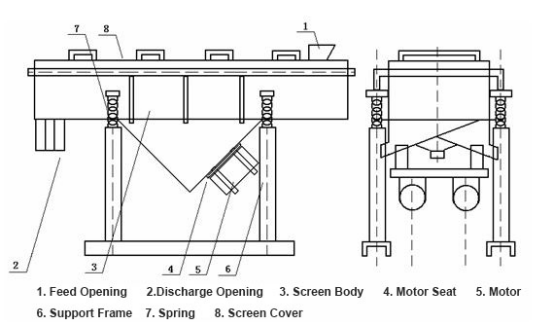

The linear vibrating screen is mainly composed of screen body, screen frame, screen mesh, vibration motor, motorseat, damping spring, bracket and so on.

Two horizontal vibrating motors are used as the vibration source to cause the material to be thrown up on the screen and perform linear projectile motion. The material is evenly fed into the vibrating screen inlet. Screened material of different sizes are produced through screen meshes and discharged from the respective discharge ports.
