Product Description

Belt Conveyor Rubber ReliableMining with Large Capacity

We manufacture Belt Conveyor Rubber ReliableMining with Large Capacity. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

In industrial production, belt conveyor can be used as a link between production equipments to achieve continuous production, increase productivity and reduce labor intensity. The working environment temperature is generally between -20 °C and +40 °C. The heat-resistant rubber belt can convey high-temperature materials below 120 °C. The belt conveyor has the advantages of large conveying capacity, simple structureand convenient maintenance. It is widely used in coal, mining, metallurgyand other industries to transport loose materials orlarge goods.

2. Specification

Width (mm)	500	650	800	1000	1200	1400
Length (m)/Power (kw)	≤12/3	≤12/4	≤10/4	≤10/5.5	≤10/7.5	≤10/15
	12~20/3.5~5.5	12~20/4~5.5	10~15/4~5.5	10~20/5.5~11	10~20/7.5~15	10~20/15~22
	20~30/5.5~7.5	20~30/5.5~11	15~30/5.5~15	20~40/11~22	20~40/15~30	20~40/22~37
Speed (m/s)	1.3~1.6			1.3~2.0
Capacity (t/h)	40~80	80~120	120~200	200~320	290~480	320~600

3. Structure and Working Principle

The belt conveyor is mainly composed of frame, belt, roller, pulley, tensioning device, transmission device and so on.

The belt conveyor consists mainly of two end pulleys and a closed conveyor belt tightly fitted over it. The pulley that drives the belt to rotate is called the drive pulley, while the other pulley that changes the direction of belt movement is called bend pulley. The drive pulley is driven by a motor through a speed reducer. The belt is dragged by friction betweenit and the drivepulley. The drivepulley is generally installed at the discharge end to increase the traction. The material is fed from the feeding end, falls on the rotating belt, and is transported to the discharge end by the friction ofthe belt.

4. Features

1. Stable conveying.There is no relative movementbetween the material and the belt, which can avoid damage to the conveyed material and reduce the wear on the belt;

2. The length, thickness and number of layers of the belt conveyor can be custom made according to the requirementsof users.

3. Simple structure, large conveying capacity, convenient maintenance and wide application range.

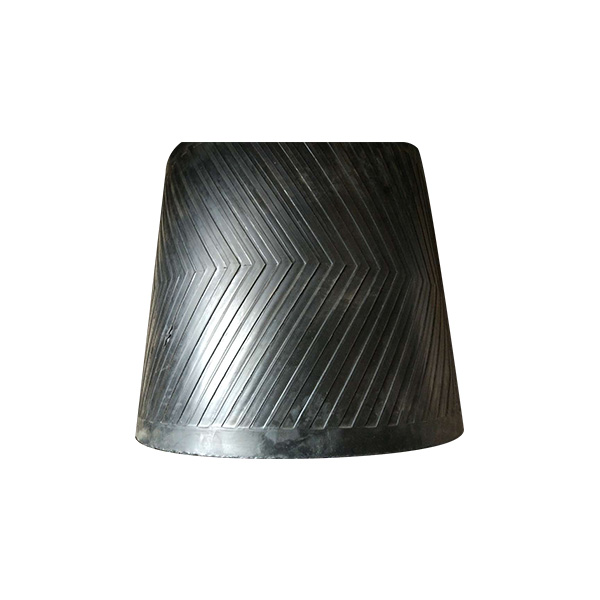

4. High adaptability and stability. It can be adapted to the ambient temperature of -20 ° C to +40 ° C, and the temperature of the conveying material is below 50 ° C. Chevron belt can resist skid efficiently and enhance the stability of the work.

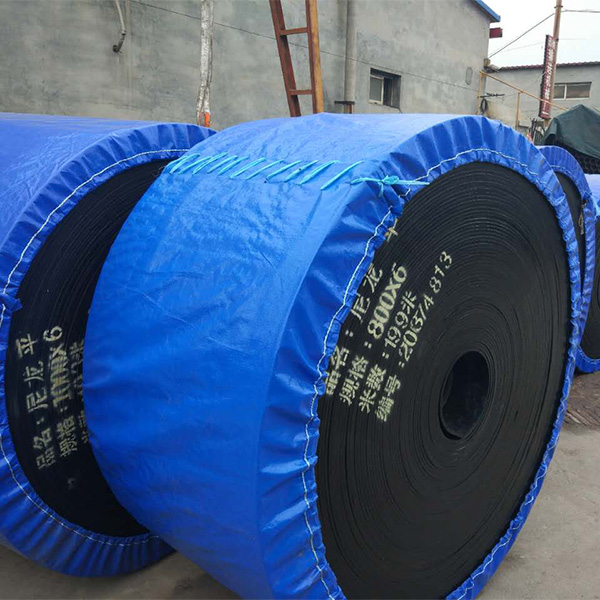

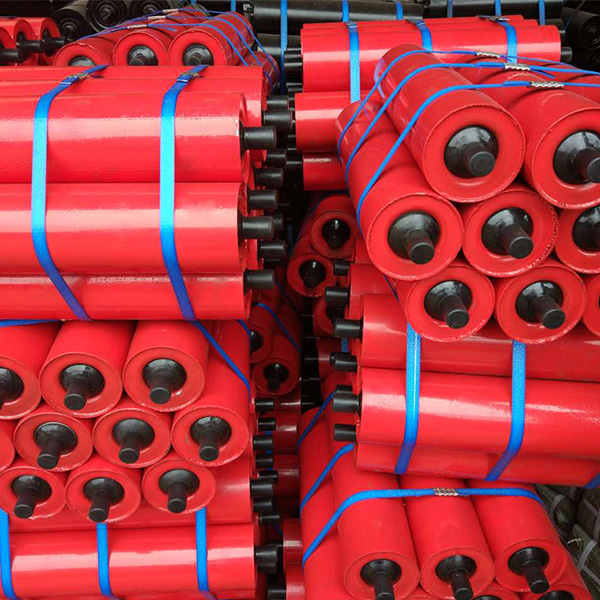

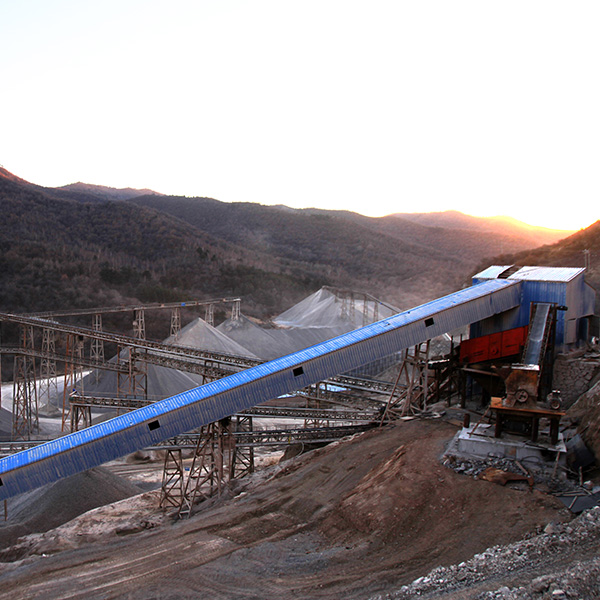

5. Pictures
