Product Description

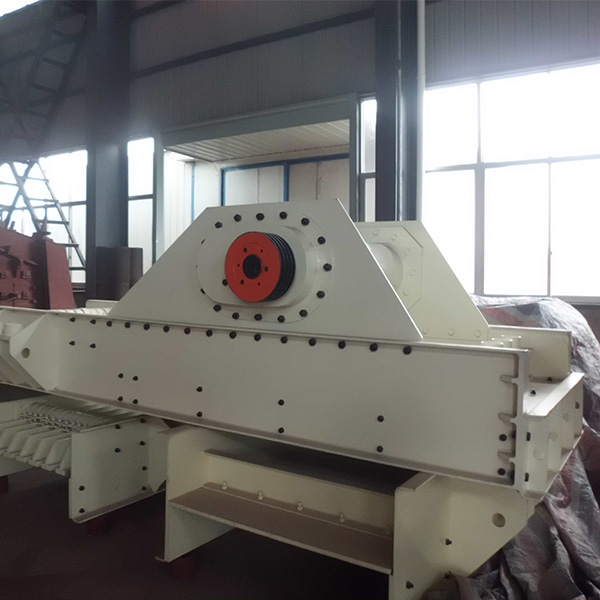

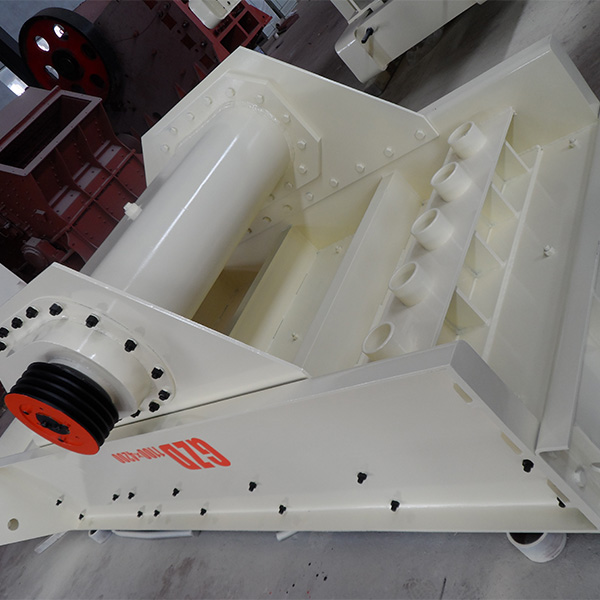

Vibrating Feeder Grizzly Linear Efficient with Large Capacity Small Energy Consumption

We manufacture Vibrating FeederGrizzly Linear Efficient with Large Capacity Small Energy Consumption. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

The vibrating feeder is a kind of device that uniformly, regularly and continuously feeds the block and granular materials into the receiving device. In the aggregate production line, the feeder can feed the crushers continuously and evenly to buffer the impact of the stone on the crushingmachine and prevent the crushing machinery from being blocked, which can improve the efficiency and service life of the entire production line.

It has grizzly type and plate type. The plate type is usually used in the quarry, whichfeeds all the materials in the crushing machine. The grizzly type can screen the stones roughly. The vibrating feeder is necessary for the whole plant, and is widely used in quarry, metallurgy, coal mine, mineral processing and building materials industries.

2. Specification

Model	Chute Size (mm)	Feeding Size (mm)	Capacity (t/h)	Power (kw)	Weight (kg)	Overall Dimension (mm)
GZD-600×1800	600×1800	300	30-80	1.1×2	1050	2200×1100×600
GZD-800×3000	800×3000	400	80-120	1.5×2	3195	3110×1600×1600
GZD-960×3800	960×3800	500	120-120	2.2×2	3980	3850×1950×1630
GZD-1100×4200	1100×4200	580	200-430	3.7×2	5570	4400×2050×1660
GZD-1100×4900	1100×4900	580	280-500	5.5×2	6520	5200×2050×1700
GZD-1300×5200	1300×5200	650	450-600	7.5×2	8200	5200×2350×1750
ZSW-960×3800	960×3800	500	90-200	11	3980	3882×2224×2121
ZSW-1100×4900	1100×4900	580	180-380	15	5320	4957×2500×1365
ZSW-1300×4900	1300×4900	750	250-450	22	5900	4957×2580×2083

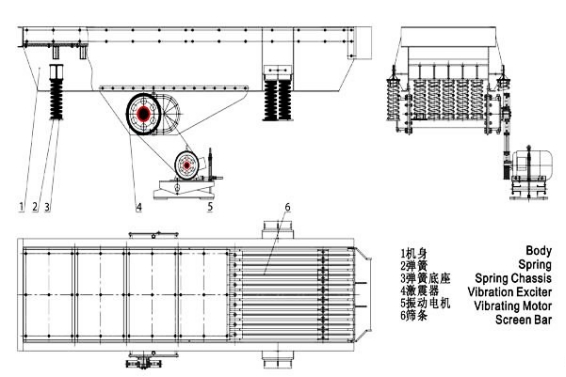

3. Structure

The vibrating feeder is composed of vibration exciter, feedchute, spring support andtransmission. The vibration source of the feeder is an exciter. The motor drives the vibration exciter through the V-belt, thereby driving the chute to vibrate, so that the material can continuously move in the chute to achieve the purpose of conveying the material.
