Metallurgy Rotary Kiln Chemical Sand with Top Quality and Competitive Price

We manufacture Metallurgy Rotary Kiln Chemical Sand with Top Quality and Competitive Price. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

Metallurgy rotary kiln produced by our Sankay company adopted new energy-saving refractory materials and insulation materials,it has been widely used for metallurgy, ceramics, machinery, electronic glass, chemical, building materials, and other industries. It has the advantages of simple structure, convenient and reliable production process, less wearing parts and high operation rate.

2.Features

1.Metallurgy rotary kiln body adopted high quality calm carbon steel and it can automatic welding.

2.It has advanced spindle structure, automatic temperature measuring device and electric heating device.

3.DC motor or variable frequency motor controls the speed and makes it’s operation reliable, energy saving and high efficiency.

4.The transmission adopts hard gear reducer and elastic diaphragm coupling.

5.Metallurgy rotary kiln adopted hydraulic retaining wheel and equipped with advanced hydraulic control system.

6.Metallurgy rotary kiln has slow drive device.

3. Working Principle

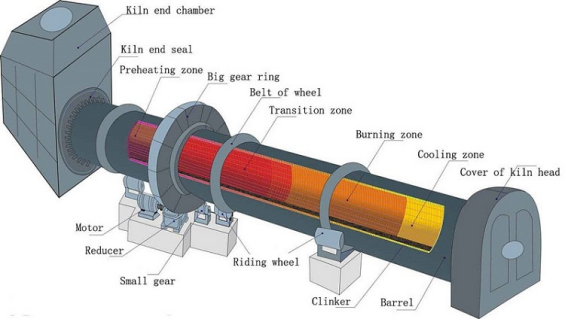

When metallurgy rotary kiln is working, the cylinder rotates under the action of the rotating device,raw material enter into cylinder body,raw material makes circular motion around the cylinder and the movement from the high end to the low end under the role of cylinder rotating and tilting device. Raw material is decomposed and calcined in the cylinder, then discharged material enter into the cooling machine.The heating energy is fed by the kiln head,fuel is injected into the cylinder and burned in the kiln body,then form large amount of heat to processing material,the heat gas discharged from the kiln for further processing.

4. Technical Parameter

Model	Diameter (m)	Length (m)	Slope (%)	Capacity (t/h )	Speed (r/min)	Power (kw)	Weight (t)
Φ2.5×40	2.5	40	3.5	180	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	3	200	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	3.5	204	0.48-1.45	55	196.29
Φ2.7×42	2.7	42	3.5	320	0.10-1.52	55	198.5
Φ2.8×44	2.8	44	3.5	400	0.437-2.18	55	201.58
Φ3.0×45	3	45	3.5	500	0.5-2.47	75	210.94
Φ3.0×48	3	48	3.5	700	0.6-3.48	100	237
Φ3.0×60	3	60	3.5	300	0.3-2	100	310
Φ3.2×50	3.2	50	4	1000	0.6-3	125	278
Φ3.3×52	3.3	52	3.5	1300	0.266-2.66	125	283
Φ3.5×54	3.5	54	3.5	1500	0.55-3.4	220	363
Φ3.6×70	3.6	70	3.5	1800	0.25-1.25	125	419
Φ4.0×56	4	56	4	2300	0.41-4.07	315	456
Φ4.0×60	4	60	3.5	2500	0.396-3.96	315	510
Φ4.2×60	4.2	60	4	2750	0.4-3.98	375	633
Φ4.3×60	4.3	60	3.5	3200	0.396-3.96	375	583
Φ4.5×66	4.5	66	3.5	4000	0.41-4.1	560	710.4
Φ4.7×74	4.7	74	4	4500	0.35-4	630	849
Φ4.8×74	4.8	74	4	5000	0.396-3.96	630	899
Φ5.0×74	5	74	4	6000	0.35-4	710	944
Φ5.6×87	5.6	87	4	8000	Max4.23	800	1265
Φ6.0×95	6	95	4	10000	Max5	950×2	1659
