Cyclone Separator

Industrial Vortex Multi for Dust Collector Liquid

We manufacture Cyclone SeparatorIndustrial Vortex Multi for Dust Collector Liquid. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

The KX type separator is designed by applying the plane eddy current theory to the cyclone separator. It can be combined with grinding mills such as Raymond mill, ball mill and roller mill to separate the ultrafine powder, which has the functions of low energy consumption and low pollution. The powder selection efficiency is over 85%; the fineness adjustment is flexible and convenient. The device can also be used for separating the super-standard stone powder in the artificial sand production process, and can conveniently control the content of the stone powder in the artificial sand.

2. Specification

3. Working Principle

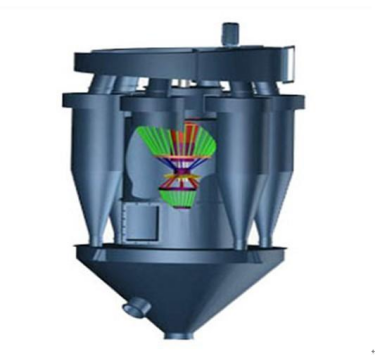

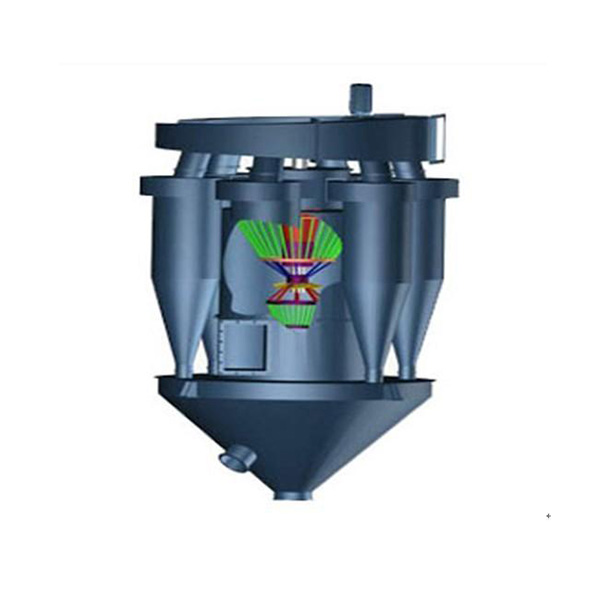

The grinding material enters the inner shell of the cyclone separator from the upper hopper and falls onto the distribute plate integrated with the rotor. Under the high-speed rotation of thedistribute plate, the material is subjected to inertial centrifugal force. At the same time, thematerial is blown under the ascending airflow generated by the blades of the distribute blade. The finer particles float upward andsuspendin the chamber, while the coarser materialsdrop down.

A cage type rotor is set under the distribute plate. The rotor rotates with the main shaft to form a vortex flow. The dropped coarser material is broken upagain, and the fine powder is lifted up and returned in the circulating wind.

4. Feature

1. Combining a variety of powder selection principles, the materials are all selected in the powder selecting area, so the classification accuracy is high.

2. The adjustable-speed motor is used to adjust the spindle speed, so the fineness adjustment is convenient, sensitive and reliable. Also, the adjustment rangeand application is wide.

3. Optimized the space scale of the powder selection areaand the lifting area, and improved the efficiency of powder selection.

4. All wearing parts are protected by new-typelining plates, which is easy and convenient to repair and effectively extend the life of thecyclone separator.

5. Energy saving and consumption reduction. System power consumption is reduced by about 30% compared with traditional circulating flow classifier.

6. The dust-proof and vibration-reducing blower with a vibration-damping machine baseis adopted. The whole machine runs basically without vibration.

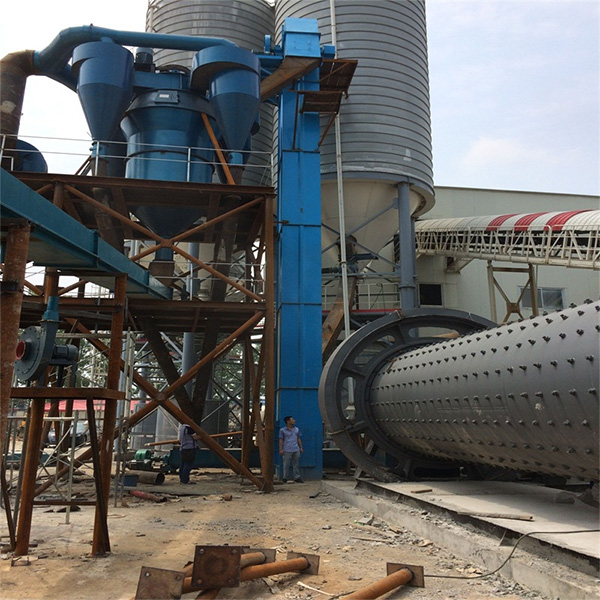

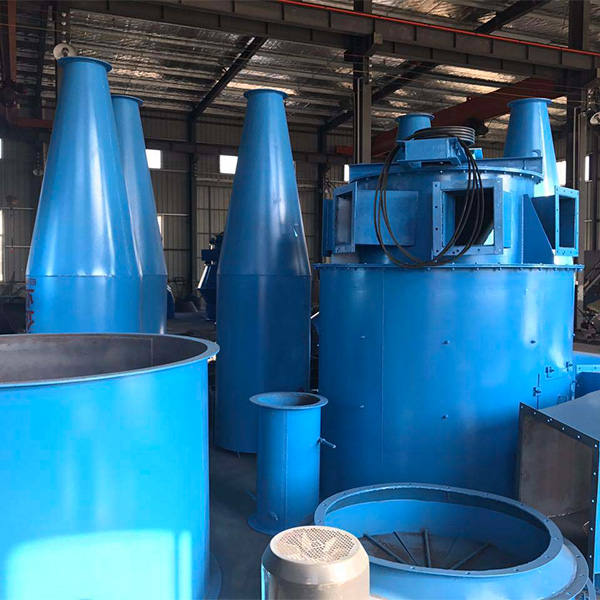

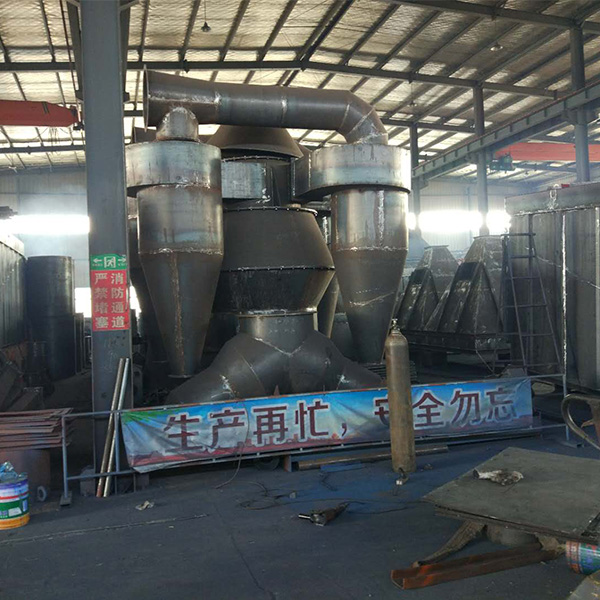

5. Pictures
