Magnetic Separator Permanent Drum Wet High Intensity

We manufacture Magnetic Separator Permanent Drum Wet High Intensity. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your part

Inquire Whatsapp

Mineral Separation Plant

Product Description

1. Brief Introduction:

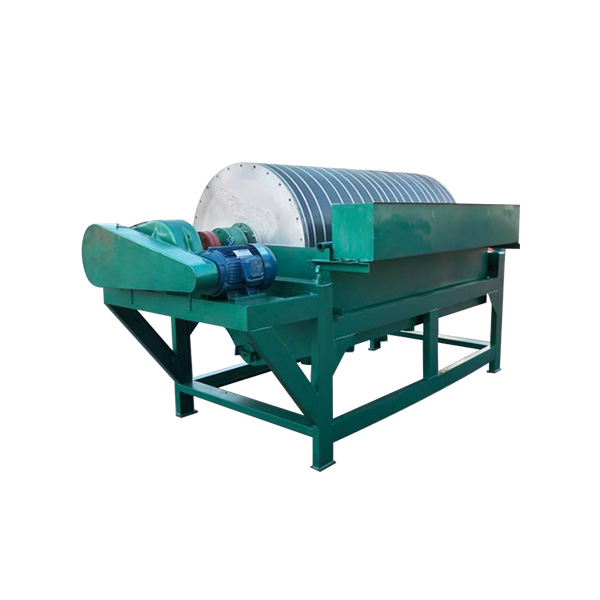

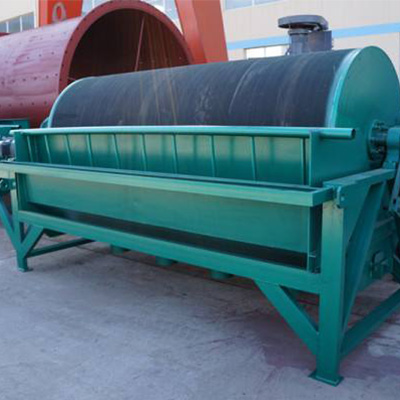

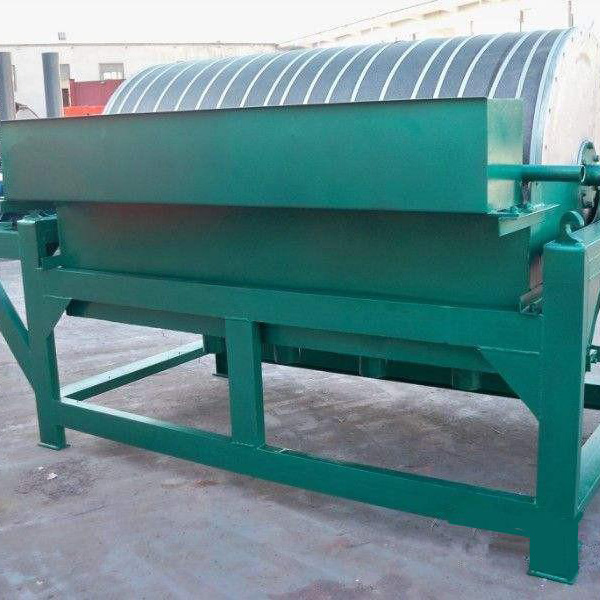

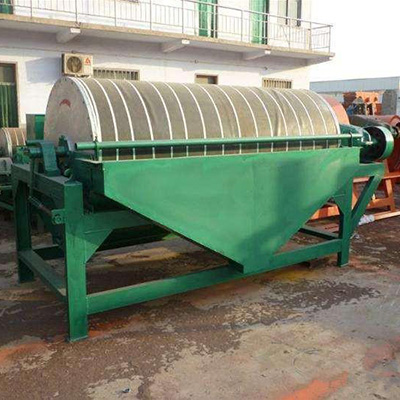

Drum permanent magnetic separator produced by our Sankay company features of simple structure,large handling capacity,easy to operate and maintain. It is suitable for the Iron ores which size is larger than 3mm,such as magnetite, pyrrhotite, roasting ore and so on. Magnetic Separator also suitable for coal, non-metallic minerals, building materials and other iron removal work, it has been widely used in mining, timber, chemical, food and other industries.

2.Features

1.Magnetic depth is large,so the processing capacity is high.

2. Three tanks are available to meet different sorting requirements.

3.The downstream tank is suitable for ore size 0.6~0mm’s rough selection.

4.The counterflow tank is suitable for ore size 0.6~0mm’s rough selection and concentration.

5.Semi-inverted tank is suitable for rough selection and concentration,the particle size is 0.5~0 mm,it is especially for concentrating minerals with particle size of 0.15~0 mm.

3. Working Principle:

After the slurry enters the bottom tank of the magnetic separator, the ore grains with loosely condition enter the mine feeding, the magnetic ore is formed "magnetic chain or magnetic group" under the action of the magnetic field. They overcome gravity and mechanical force to move toward the magnetic pole,the slurry is attracted to the surface of the cylinder and moves with the cylinder.During this moving process,it removes a portion of gangue ore particles which is entrained in magnetic ore particles, thereby improving the taste of the concentrate. The non-magnetic or weak magnetic ore particles are discharged from the tailing hole into the tailings pipe under the action of the slurry flow in the tank.

4. Technical Parameter

Model	Diameter (mm)	Drum Length (mm)	Speed (r/min)	Feeding size mm	Capacity (t/h)	Power (KW)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
