Hydraulic Impact Crusher

Hydraulic Impact CrusherHorizontal Shaft with Large Capacity High Quality

We manufactureHydraulic Impact CrusherHorizontal Shaft with Large Capacity High Quality. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

Hydraulic impact crusherhad been widely used in metallurgy, mining, cement, chemicals, refractories, ceramics and other industrial fields. It is suitable to crushing kinds of medium and hardness rocks,such as basalt, andesite, river pebble, granite and other rocks.It is one of the most widely used crushers.

2.Features
1.Large crushing ratio,customers can choose the crushing cavity.

2.High working efficiency,optimized design makes the production become more larger than before.

3.Spare parts such as hammer plate,impact plate and liner plate all adopt wear resistant alloy.

4.Hydraulic impact crusher equipped with multifunctional hydraulic station,it owns hydraulic high speed discharge gap.

5.Hydraulically adjust the discharge opening to required product size. Saving time and effort.

3.Working principle
Hydraulic impact crusheruse impact energy to crushing materials.When it is working,the rotor rotates at high speed with the motor,feeding material impacting with the plate hammer on the rotor,material are being crushed through hammer’s high speed impacting. Crushed material countered to the liner and being crushed again. Then all of them discharge from the output opening. Adjusting the gap between the counter frame and the rotor frame can achieve the purpose of changing the material discharge size and material shape.

4.Technical Data

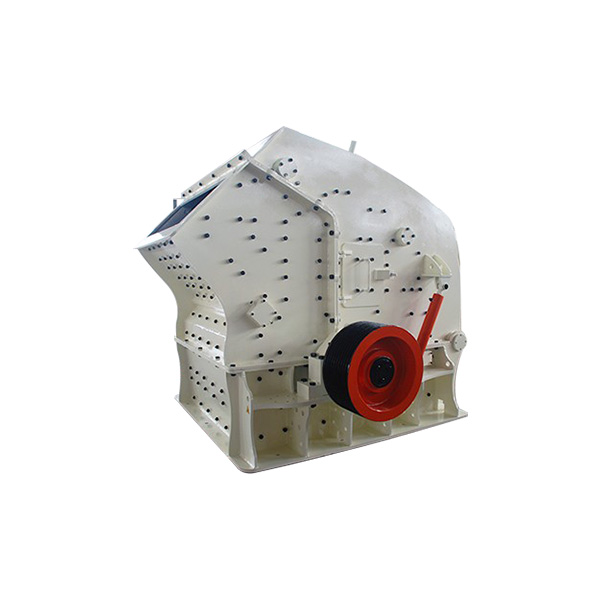

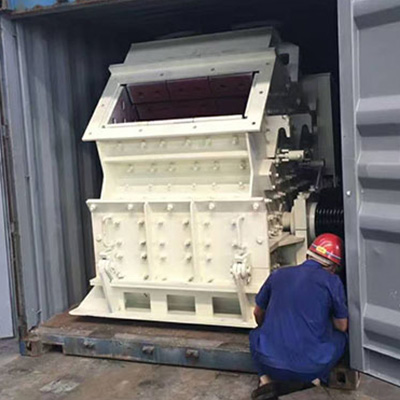

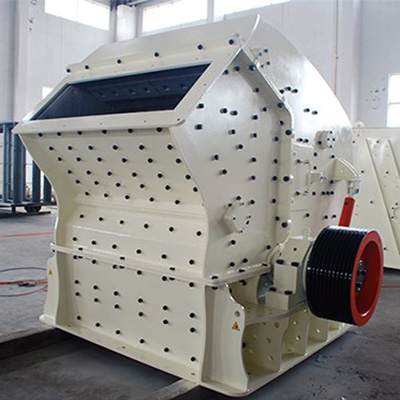

5.Pictures

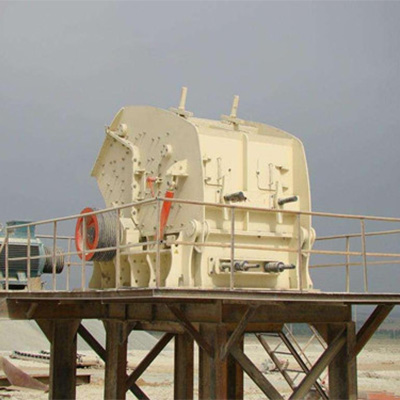

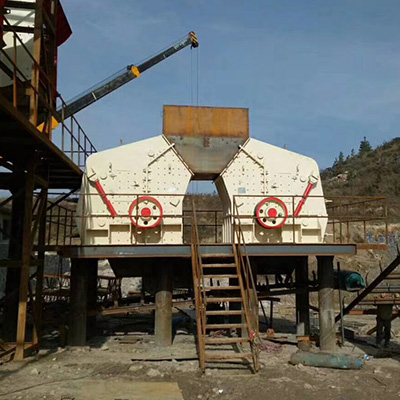

6.Working Site
