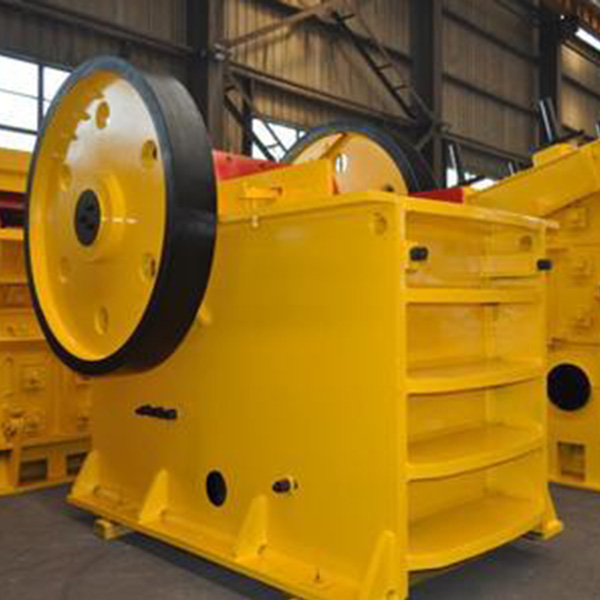

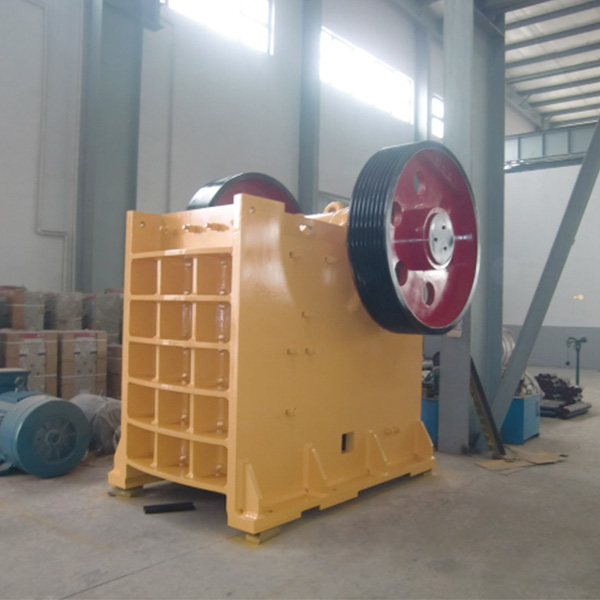

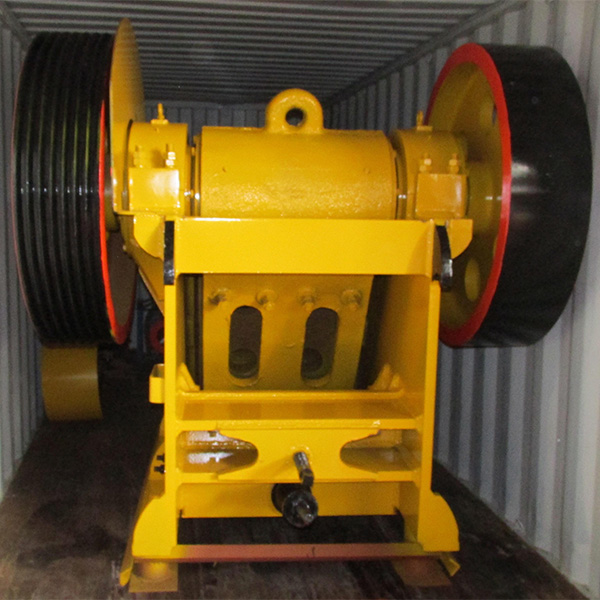

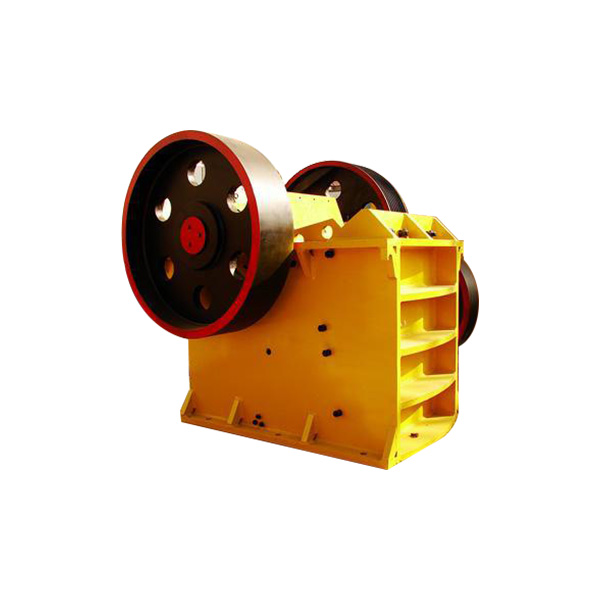

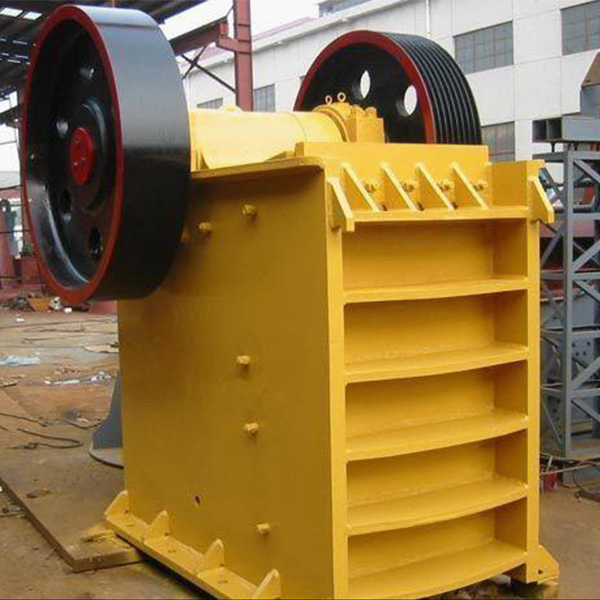

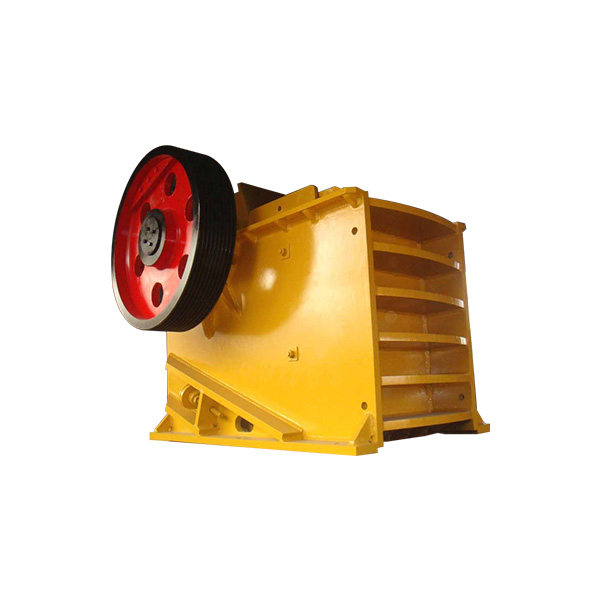

Mining Rock Jaw Crusher

Mining Rock Jaw Crusher is one of our main products. We can manufacturedifferent models of jaw crusher. Also we can custom made and OEM according to your requirements. Our crushers and crushing plants have been exportedto South Asia, South America, A

Inquire Whatsapp

Rock Crusher

Product Description

1. Brief Introduction

Mining rock jaw crusher is the earliest and the most mature crushing machine. It has advantages of simple structure, reliable work, low operating cost, easy maintenance, stable performance, etc., so it is still widely used in metallurgical, chemical, building materials, electric power, transportation and other industries. Now on the basis of the traditional crusher, some new jaw crushers are gradually being developed and put into production, providing customers with more choices.

2. Technical Parameter

Model	OpeningSize (mm)	Max Feeding Size (mm)	Discharge Opening (mm)	Capacity (t/h)	Power (kw)	Dimension (mm)	Weight (t)
PE-150×250	150×250	125	10-40	1-3	5.5	670×820×760	0.81
PE-150×750	150×750	125	10-40	5-16	15	1050×1490×1055	3.8
PE-250×400	250×400	210	20-60	5-20	15	1160×1300×1240	2.8
PE-400×600	400×600	350	40-100	16-65	30	1480×1710×1646	7
PE-500×750	500×750	425	50-100	45-100	55	1800×1796×1940	12
PE-600×900	600×900	500	65-160	60-160	75	2235×2210×2380	17
PE-750×1060	750×1060	630	80-140	90-320	110	2430×2302×3110	29
PE-900×1200	900×1200	750	95-210	140-450	130	3789×2826×3025	50
PE-1000×1200	1000×1200	850	110-235	160-550	130	3889×2826×3025	57
PE-1200×1500	1200×1500	1020	150-300	400-800	160	4590×3342×3553	100.9
PEX-250×750	250×750	210	25-60	15-30	22	1750×1500×1420	5
PEX-250×1000	250×1000	210	25-60	16-52	30	1940×1650×1450	7
PEX-250×1200	250×1200	210	25-60	20-65	37	1940×1850×1450	7.7

3. Features

1. Simple structure, large crushing ratio, low maintenance cost and stable performance.

2. The lubrication system is reliable, and the parts are easy to replace.

3. Available in cast steel and welded construction.

4. The discharge opening of mining rock jaw crusher has a large adjustment range to meet the requirements of different users.

5. Low noise, environmental protection and less dust.

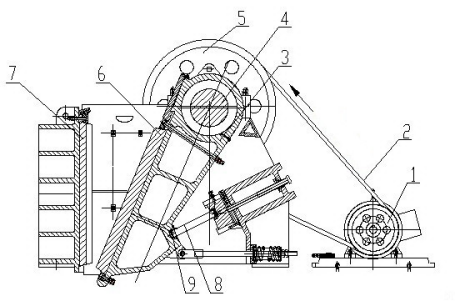

4. Structure and Working Principle

1. Motor 2. V belt 3. Movable Jaw 4. Eccentric Shaft 5. Belt Pulley

6. Movable Jaw Plate 7. Fixed Jaw Plate 8. Toggle Plate 9. Toggle Plate Pad

Mining rock jaw crusher working principle: driven by the motor, the pulley and belt move the movable jaw through the eccentric shaft. When the movable jaw rises, the movable jawplate is approached to the fixed jawplate, and the material is crushed during the extrusion; when the movable jaw moves down, the movable jaw plate leaves the fixed jaw plate under the action of the spring and rod, and the broken material is discharged.
